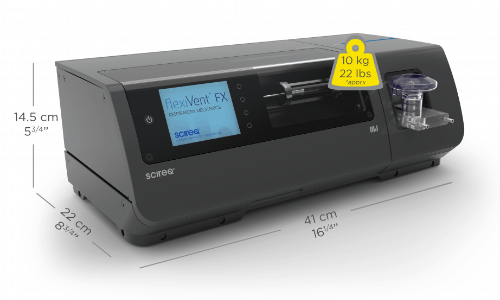

Specifications

A flexiVent system consists of a base unit and a module, and may require additional extensions and accessories. Detailed specifications of the flexiVent’s capabilities are provided in the tables below. For a customized quotation that meets your research needs, please contact SCIREQ Customer Service.

Module & Extension Specifications

Module or extension	Y-Tubing Port Size (in)	Intake & exhaust port size, barbed¹ (in)	Maximum displaced volume (ml)	Minimum weight²	Maximum weight for large amplitude manoeuvers² (g)
FX Module 1	1/8	1/8	1.53	3	30
FX Module 2	3/16	1/8	4.22	15	85
FX Module 3	3/16	1/8	12.4	60	240
FX Module 4	3/8	1/4	28.2	150	560
FX Module 5	3/8	1/4	51.7	260	1000
FX Module 6	3/8	1/4	96.6	500	2000
FEV with FX Modules 1&2	1/8	1/8	1.53	8	30
FEV with FX Modules 3	3/16	1/8	12.4	60	150
FEV with FX Modules 4	3/8	1/4	28.2	150	300
FEV with FX Modules 6	3/8	1/4	96.6	500	1500

Intake and Exhaust ports use Colder PMC/PLC connectors. FX Modules are shipped with mating fittings for easy connection to standard tubing sizes.
Minimum and maximum weight ranges are subject to change with further development and are listed for healthy subjects.
Estimated using 50 ml/kg ratio.

Ventilation Characteristics

Specification	Conditions	Minimum	Typical	Maximum	Units
Ventilation frequency⁴	Based on 1:1 I:E (max varies with subject weight)	6	_	600	br/min
I:E ratio⁴	_	1:7	2:3	2:1	_
PEEP⁵	Computer controlled	0	3	20	cmH₂O
Pressure range⁶	_	-80	_	80	cmH₂O
Control modes⁷	Mechanical (e.g 10 ml/kg displaced) or Pressure (e.g. peak cylinder) controlled ventilation
Gas supply	Room air or non-flammable mixed gas

The I:E ratio in the software is expressed as a percentage of the exhalation time that the inhalation time lasts, e.g. the default 2:3 I:E ratio is expressed as 67%, a 1:1 ratio is expressed as 100%.
The lower limit for computer-controlled PEEP is on the order of 0.25-0.5 cmH2O and may vary slightly from one configuration to the next. The minimum of 0 cmH2O reflected in the table is achievable if the option for PEEP control is set to ‘External’ in the ventilation pattern definition dialogue.
Linearity of the transducers is only guaranteed up to ± 76.2 cmH2O
Software controlled ventilation modes are predefined by user.

Measurements With Extensions & Configurations

Extensions or Configurations	# of subjects	Dynamic Resistance & Compliance	Airways (Rn) versus Tissue (G/H)	Pressure-Volume Loops Weight² (g)	Flow-Volume Loops (FEVx)	Vital Signs
FX Modules 1 to 6	1
FEV	1
Imaging	1

Port & Channel Specifications

Extensions or Configurations	AUX 1	AUX 2	AUX 3	AUX 4
FX Modules 1 to 6 with Aeroneb & Vital Signs	Aeroneb adapter cable	EKG	Blood Pressure	Body Temperature
FEV with Modules 1 & 2	Aeroneb adapter cable	NPFE adapter cable	Plethysmograph	_
FEV with Modules 4	Aeroneb adapter cable	NPFE adapter cable	Plethysmograph	_

Computer System Requirements

Computer System Component	Recommended
Processor	Intel® Core i7
Memory	16 GB
Hard Drive	2 TB
Operating System	Windows 11 Professional
Monitor Resolution	1280 x 1024
Video Card	256B MB of video RAM
Networking	2 Network Cards
